How to Build a Cloud Threat Model for Healthcare
Post Summary
Healthcare organizations increasingly rely on cloud storage, with 94% of their data now in cloud environments. However, 45% of these organizations report limited visibility into risks, leading to costly breaches. In 2023, healthcare data breaches exposed 540 million patient records, with an average cost of $10.93 million per incident. Misconfigurations, like those in the 2023 Change Healthcare breach, highlight the need for proactive cloud threat modeling.
Key steps to build a cloud threat model for healthcare include:
- Mapping PHI (Protected Health Information) data flows to identify entry, transit, and exit points.
- Creating data flow diagrams (DFDs) to visualize PHI pathways and vulnerabilities.
- Using STRIDE to categorize threats like spoofing and tampering in cloud systems.
- Ranking threats by their impact on HIPAA compliance and patient data security.
- Implementing safeguards (technical, administrative, and physical) to address risks.
- Integrating threat modeling into CI/CD pipelines for continuous security checks.
- Automating evidence collection to streamline HIPAA audits and compliance.
These practices help healthcare organizations secure sensitive data, prevent breaches, and meet regulatory requirements effectively.

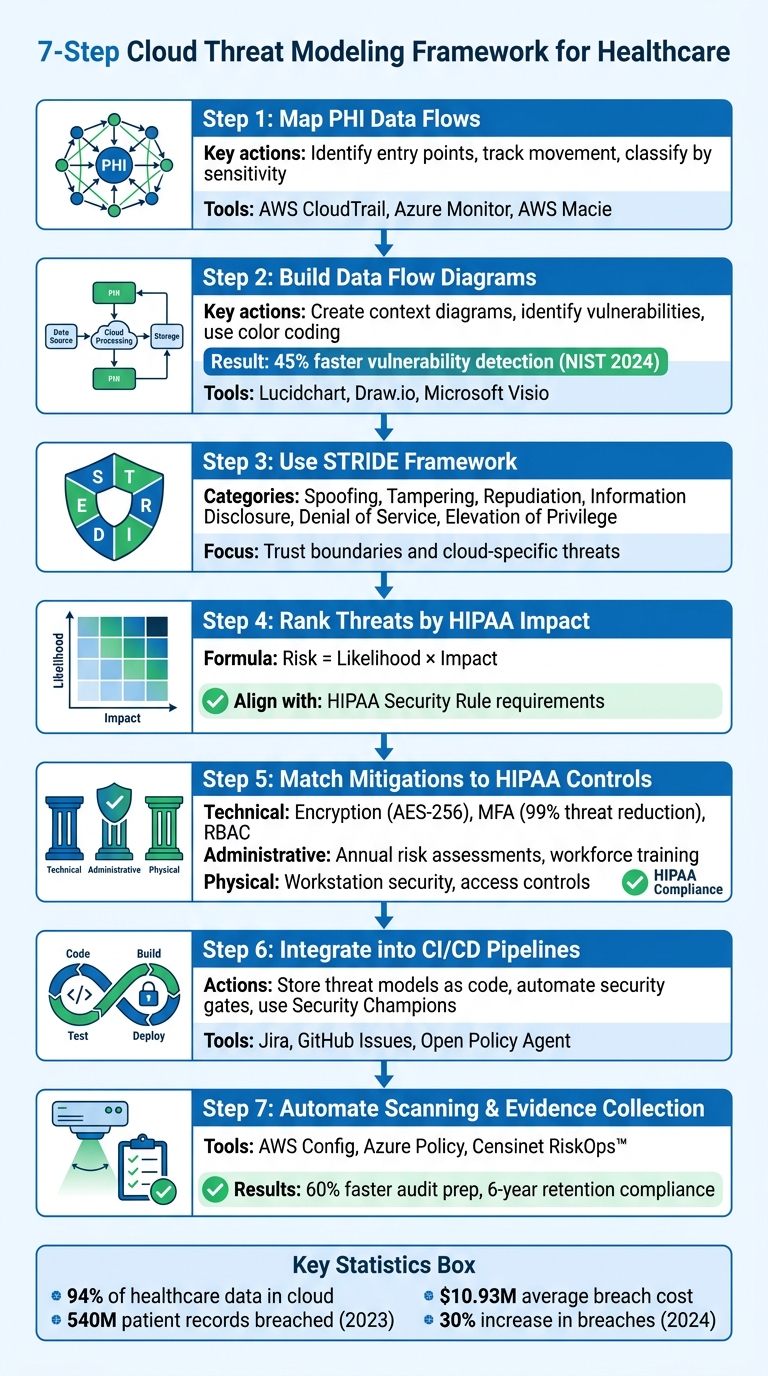

7-Step Cloud Threat Modeling Framework for Healthcare HIPAA Compliance
Cloud Threat Model | Lets make a Sample Threat Model for the Cloud !
This model helps teams implement real-time portfolio risk management to protect patient safety and care operations.
sbb-itb-535baee
Step 1: Map PHI Data Flows in Your Cloud Infrastructure
Start by identifying where PHI (Protected Health Information) is located and how it moves within your cloud environment. Mapping these flows is critical - it highlights every entry point, internal movement, and exit route in your system. This step lays the groundwork for spotting vulnerabilities that traditional security tools might overlook, especially those unique to cloud setups.
Find Where PHI Enters, Moves, and Exits Your Cloud Systems
To locate PHI entry points, dive into your cloud logs. Tools like AWS CloudTrail and Azure Monitor can help you track data coming in through patient portals, mobile app uploads, or HL7/FHIR integrations from on-premises EHR systems. Collaborate with IT and clinical teams to document all sources, including any unsanctioned tools that might be in use. This collaboration is essential for effective third-party risk management across the ecosystem. For tracing data ingestion, AWS X-Ray can be particularly useful.
When it comes to tracking PHI movement, data lineage tools like Collibra or Google Cloud Data Catalog are invaluable. These platforms map out how patient records flow between services - for instance, how imaging files move from S3 buckets to Lambda functions for processing, and then to Redshift databases for analytics. At every step, ensure TLS 1.3 encryption is in place. In AWS environments, it’s common for PHI to enter via patient portals, process through containerized applications, and exit via provider notifications.
Pay close attention to exit points. Logs, API gateways, and backup transfers often signal potential exfiltration risks. Misconfigured S3 buckets or unencrypted downloads can lead to significant exposure. For example, in 2023, a major hospital breach exposed 1.5 million PHI records due to publicly accessible cloud links [2]. This highlights the importance of egress filtering to prevent such incidents.
After identifying entry, transit, and exit points, classify PHI based on its risk level to implement the right access controls.
Classify Data by Sensitivity and Set Access Controls
Classify PHI into categories like low (de-identified), medium (anonymized), or high (identifiable data), following HIPAA guidelines and NIST SP 800-66 standards. High-risk data, such as mental health records, HIV status, or substance abuse treatment notes, requires extra safeguards due to the potential harm caused by breaches. Tools like AWS Macie and Azure Purview can automate the discovery and classification process, cutting manual effort by up to 70%, according to Gartner research on cloud data loss prevention solutions.
To strengthen security, integrate these classification tools with SIEM platforms like Splunk and conduct quarterly reviews with compliance officers. Use Cloud Security Posture Management (CSPM) tools such as Prisma Cloud to maintain a complete inventory of your cloud assets. This ensures that serverless functions or shadow IT don’t go unnoticed, keeping your PHI data secure and compliant.
Step 2: Build Data Flow Diagrams for Your Cloud Systems
Once you've mapped your PHI, the next step is creating data flow diagrams (DFDs). These diagrams give a clear picture of how patient data moves through your cloud systems, helping you identify weak points that could be exploited. A 2024 NIST Cybersecurity Framework report revealed that healthcare organizations using DFDs in their threat modeling reduced the time to detect vulnerabilities by 45% [1].
How to Create Effective Data Flow Diagrams
Start with a high-level context diagram that outlines the overall flow of PHI. Then, break it down into detailed diagrams showing specific processes, data stores, and data paths (e.g., Patient Mobile App → API Gateway → Encrypted Database). Be sure to label each data flow with its security attributes [1].
For building these diagrams, tools like Lucidchart, Draw.io, or Microsoft Visio can be invaluable. If you're working in AWS or Azure, use cloud-native templates to streamline the process. For example, Draw.io is free and integrates with Confluence, while Lucidchart Enterprise offers HIPAA-compliant features like SSO and data encryption, making it a solid choice for PHI mapping [1][5].
To make your diagrams more actionable, consider using color codes to represent risks:
- Red: High-risk PHI
- Yellow: De-identified data
- Green: Non-PHI
Use dashed lines to indicate encrypted flows and solid lines for unencrypted ones. This kind of visual clarity allows your security team to quickly identify and prioritize enterprise risks during their assessments.
Identify Vulnerability Points in the Cloud
Once your diagrams are ready, the next step is to locate vulnerabilities in these data flows. Common weak points include misconfigured APIs, unencrypted storage, poorly defined IAM roles, and insecure serverless functions [1]. Use visual markers like lightning bolt symbols to flag risks such as potential DDoS attacks or data exfiltration threats.
Pay special attention to trust boundaries - places where data transitions between security zones. Examples include VPC peering connections or internet gateways, which are often prime targets for attackers. Walk through each PHI pathway with your security team, examining it for vulnerabilities based on the OWASP Top 10 cloud security risks. Annotate these risks with severity scores, such as High: Public bucket - CVSS 8.5, to highlight areas that need immediate attention.
To keep your diagrams up-to-date, integrate DFD reviews into your regular security audits and CI/CD workflows. To speed up these reviews, you can automatically answer security questionnaires using existing documentation. Tools like Terraform, paired with IaC scanning solutions like Checkov, can help automate this process [1].
Step 3: Use STRIDE to Find Cloud-Specific Threats
Now that you've got your data flow diagrams (DFDs) mapped out, it's time to use STRIDE. This framework helps identify potential risks across your cloud setup by categorizing threats into six types: Spoofing, Tampering, Repudiation, Information Disclosure, Denial of Service, and Elevation of Privilege.
Applying STRIDE in Healthcare Cloud Environments
With your DFDs as a guide, apply STRIDE to closely examine every interaction and system component - APIs, databases, user interfaces, and data flows. For example, consider how an attacker might spoof a provider's identity on your patient portal or tamper with cloud-stored patient records. These risks could lead to unauthorized access or data manipulation.
"Threat Modeling is a proactive, holistic approach of analyzing potential threats and risks in a system or application to identify and address them proactively." - CMS Threat Modeling Handbook [6]
Pay extra attention to trust boundaries, which are the points where data transitions between different security zones. These boundaries are often vulnerable areas, so it's critical to document which security controls are handled by your organization and which are managed by the cloud provider. This ensures there are no gaps where responsibility falls through the cracks.
Document Threats and Evaluate Their Impact on PHI
As you uncover potential threats, record them in a centralized template that's easy to access and update. For each threat, evaluate its impact on confidentiality, integrity, availability, and HIPAA compliance.
"Evaluate the potential impact of each identified threat. Consider the consequences in terms of confidentiality, integrity, availability, regulatory compliance, or other relevant factors." - CMS Threat Modeling Handbook [6]
Work closely with your Information System Security Officer (ISSO) and relevant business owners to prioritize these threats. Focus on those that pose the greatest risk to patient data or are most likely to be exploited. A simple four-question framework can help guide this process:
- What are we working on?
- What can go wrong?
- What are we going to do about it?
- Did we do a good enough job?
Don't overlook "unstructured threats", which might not fit neatly into predefined categories but still need to be tracked. For tampering risks, consider using File Integrity Monitoring (FIM) to establish a baseline for authorized files and quickly detect any unauthorized changes to configuration or log files.
Once you've documented and assessed these threats, the next step is to rank them based on their potential impact on HIPAA compliance.
Step 4: Rank Threats by HIPAA Compliance Impact
After documenting and analyzing threats, the next step is to rank these risks to guide your mitigation efforts. This prioritization ensures that threats are addressed in alignment with HIPAA compliance requirements. Focus on factors like the sensitivity and amount of e-PHI at risk, regulatory exposure, potential harm to patients, and the impact on operational continuity.
Evaluate Threat Likelihood and Severity
Each threat should be assessed for both its likelihood and severity. Likelihood refers to how probable it is that the threat will occur, while severity measures the potential damage it could cause to healthcare operations, patient safety, or your compliance efforts.
To make these assessments, you can use:
- Qualitative scales (e.g., low, medium, high)
- Quantitative models (e.g., financial or regulatory metrics)
- Hybrid approaches that combine quick qualitative evaluations with detailed quantitative analysis for high-risk scenarios.
The risk level can be calculated using the formula: Likelihood × Impact. Any threat that scores high in both categories should be addressed immediately. Keep a detailed risk register that logs each threat, the assets it affects, current controls in place, and any remaining risks. This document will serve as your go-to resource for audits and for evaluating the success of your mitigation strategies.
Once risks are quantified, integrate these insights into your broader HIPAA compliance strategy, ensuring that your efforts are targeted and effective.
Align Threat Rankings with HIPAA Security Rule Requirements
Your threat rankings should feed directly into your compliance framework. Use the NIST cloud security guidelines (Prepare, Identify, Analyze, Determine Risk, Recommend, Document) to maintain consistency and ensure your methodology produces reliable results across audits.
"Embed HIPAA Security Rule risk analysis expectations into your methodology so assessments directly inform administrative, physical, and technical safeguards." - Kevin Henry, Risk Management
High-priority threats should be directly tied to HIPAA safeguards, such as:
- Role-based access controls
- Encryption protocols
- Audit logging systems
Leverage tools like Cloud Security Posture Management (CSPM) to continuously monitor for configuration issues that could increase risk. Automating these checks can help you catch and address potential compliance violations before they escalate. Additionally, update your risk rankings whenever new cloud services are added, vendors are integrated, or data flows change. Static risk assessments can quickly become outdated in fast-moving cloud environments.
Step 5: Match Mitigations to HIPAA Security Controls
To protect patient data and meet HIPAA requirements, you need to implement mitigations that address the threats you’ve identified and align with HIPAA’s Security Rule. This rule organizes safeguards into three key categories: technical, administrative, and physical. Each threat identified using STRIDE should connect to one or more of these controls, creating a well-rounded defense strategy for your cloud environment.
Your mitigation plan should be clear, actionable, and designed to meet audit requirements while safeguarding patient data.
Set Up Technical Safeguards for Cloud Security
Technical safeguards are essential for protecting PHI (Protected Health Information). Start with encryption to secure data both at rest and in transit. For instance, use AES-256 encryption for stored data and enforce TLS 1.2 or higher for data in transit. On AWS, enable server-side encryption with customer-managed keys for S3 buckets. If you’re using Azure, apply Customer-Managed Encryption Keys (CMEK) to Blob Storage to ensure only authorized keys can decrypt PHI. These measures help counter tampering and data interception threats identified in STRIDE.
Implement multi-factor authentication (MFA) for all access to cloud consoles and APIs. In AWS, configure IAM to require MFA using TOTP or hardware tokens. Azure users can set up Conditional Access policies to enforce MFA for high-risk login attempts. According to Microsoft, MFA can reduce spoofing threats by 99%, making it one of the most effective controls available.
Use continuous monitoring tools like AWS CloudWatch, Azure Monitor, or Google Cloud Logging to track access to PHI and detect anomalies. HIPAA mandates that audit logs be retained for at least six years, so ensure your retention policies comply. For real-time threat detection, integrate these logs with tools like Splunk to enable automated alerting.
Apply role-based access controls (RBAC) using the principle of least privilege. Create IAM policies that limit access based on job roles, ensuring users can only access the PHI necessary for their tasks. Assign unique user IDs to everyone accessing cloud systems and conduct regular reviews to revoke unnecessary permissions.
Once technical safeguards are in place, it’s time to focus on administrative and physical protections.
Establish Administrative and Physical Safeguards
Administrative safeguards are about setting up policies and procedures to manage PHI security. Start by conducting annual risk assessments, as required by HIPAA §164.308(a)(1)(ii)(A). These assessments should document how your mitigations reduce the likelihood and impact of threats. Use the findings to update your technical controls and refine your compliance efforts.
Develop workforce security policies that outline authorization procedures and access management. Provide quarterly training sessions to help employees recognize phishing attempts and understand your security protocols. Tailor this training to your cloud environment, covering scenarios like detecting unusual AWS console activity or responding to potential breaches.
Create contingency plans that include regular data backups and disaster recovery testing. Use cloud snapshots to back up critical systems and test recovery processes every quarter. These steps ensure you can quickly restore PHI in the event of an incident. Document these processes thoroughly and make sure your team knows their roles during a security event.
While cloud providers manage physical security for their data centers, you’re responsible for securing devices that access cloud-stored PHI. Enforce workstation security policies, such as requiring locked server rooms, badge access systems, and full-disk encryption on all devices. For remote access, mandate VPN connections and deploy endpoint detection tools like CrowdStrike to prevent unauthorized access.
To streamline risk assessments and maintain audit readiness, consider using tools like Censinet RiskOps™. This platform automates the mapping of threats to HIPAA controls and provides benchmarking insights, making it easier for healthcare organizations to collaborate on PHI risk mitigations across multi-cloud environments.
Step 6: Integrate Threat Modeling into CI/CD Pipelines
Protecting PHI (Protected Health Information) requires constant vigilance, especially as systems evolve. By embedding threat modeling into your CI/CD pipelines, you can ensure that security assessments happen automatically at every stage of development. This "shift-left" strategy keeps threat models dynamic, evolving alongside your code, and ensures that any infrastructure changes are evaluated for risks before they hit production.
Add Security Checks to Development Workflows
Store your threat models as code, using formats like YAML, JSON, or Python, and keep them alongside your application in version control. This approach ensures that threat models are automatically updated when developers make changes to components that handle PHI.
Set up your CI/CD pipeline to trigger reviews whenever Infrastructure-as-Code (IaC) changes occur. For example, if someone modifies an S3 bucket configuration storing PHI, the pipeline should flag the change. An updated threat assessment would then be required before deployment. Use security gates to block deployments if high-risk changes are identified without updated threat models or if mitigations for known threats are missing.
Focus your efforts on core systems that handle PHI first. Instead of trying to model your entire infrastructure at once, start with these critical areas and expand gradually. Leverage healthcare-specific threat libraries with pre-built templates to address common risks such as weak encryption, insecure APIs, or unauthorized data access. This targeted approach saves time while tackling the most pressing threats.
To streamline the process further, integrate threat modeling with issue trackers like Jira or GitHub Issues. When a threat is detected, automatically generate a ticket that outlines the vulnerability, its potential HIPAA impact, and recommended mitigation steps. Configure your pipeline to automatically export updated threat models and evidence of mitigations, creating an audit trail that simplifies compliance with HIPAA Security Rule requirements.
By automating these checks, you create a system where security and development teams can work together more effectively.
Enable Collaboration Between Security and DevOps Teams
Automation is just the beginning. To resolve threats quickly, security and DevOps teams need to collaborate closely. Train select developers as Security Champions to lead threat assessments within their teams. This decentralized approach ensures that threats are identified early while still allowing experts to handle more complex vulnerabilities.
Adopt a shared responsibility model so developers understand their role in safeguarding PHI. Security Champions can review IaC changes for potential HIPAA violations before they even reach the security team, reducing bottlenecks and speeding up deployments. Regular cross-functional meetings between security and DevOps teams can further strengthen this collaboration. Use these sessions to review threat models, discuss emerging risks, and update mitigation strategies.
You can also enforce security requirements programmatically by linking threat models to policy-as-code engines like Open Policy Agent. For example, if your threat model mandates AES-256 encryption for S3 buckets with PHI, your policy engine can automatically block any Terraform deployment that doesn’t meet this standard.
Platforms like Censinet RiskOps™ offer centralized tools to make this collaboration smoother. They allow teams to assess risks, track mitigations, and maintain compliance across multi-cloud environments, all from one workspace. This kind of integration ensures that security becomes a natural part of your development process, rather than an afterthought.
Step 7: Automate Scanning and Evidence Collection for Audits
Keeping your threat model up-to-date and ready for audits is a challenge, especially in cloud environments managing PHI (Protected Health Information). The key? Automate your scanning and evidence collection processes. Relying on manual compliance tracking is not only time-consuming but also prone to errors. Automated systems can continuously scan for vulnerabilities and collect necessary evidence without requiring constant human input.
Leverage Automation for HIPAA Compliance Audits
To maintain HIPAA compliance, deploy tools that monitor your cloud environment 24/7. Solutions like AWS Config, Azure Policy, and Google Cloud Security Command Center are designed to ensure encryption is enabled for PHI storage, access controls are correctly configured, and logging operates without interruptions.
Set these tools to generate immutable, timestamped evidence for audits. This includes logs of API calls, configuration changes, vulnerability scan results, and backup verifications. Storing this data in immutable storage is essential to meet HIPAA's six-year retention requirement outlined in §164.316(b)(2)(i) [3].
Here’s a real-world example: In early 2024, Mayo Clinic managed to cut their HIPAA audit preparation time from four weeks to just three days. By automating scanning with Prisma Cloud and collecting evidence through API integrations, they reduced compliance staffing costs by 75% [7].
Daily compliance reports are another must-have. These reports should summarize scanned systems, highlight identified issues, and detail how quickly they were resolved. According to the Ponemon Institute, healthcare organizations using automated compliance scanning reduced audit preparation time by an average of 60% [7].
Taking automation a step further, platforms like Censinet RiskOps™ simplify risk and compliance management even more.
How Censinet Enhances Risk Management and Compliance
Censinet RiskOps™ is built to automate evidence collection across your entire healthcare ecosystem, including third-party vendors and enterprise systems. The platform continuously monitors vendor security risks and flags issues when risks exceed acceptable limits.
For instance, in 2023, Cleveland Clinic used Censinet RiskOps™ to automate risk assessments for 200 vendors. This effort produced 1,200 pieces of audit evidence, cutting remediation time by 40% and boosting third-party compliance scores from 72% to 94% [4].
The platform’s Censinet AITM™ speeds up third-party risk assessments by enabling vendors to complete security questionnaires in seconds. It automatically summarizes vendor evidence, compiles documentation, and generates reports based on assessment data. This approach balances automation with the oversight needed to scale risk management effectively.
Censinet RiskOps™ also acts as a centralized hub for all compliance activities. By aggregating evidence from various sources into cohesive reports, it eliminates the hassle of gathering documentation from scattered systems. This ensures your cloud threat model stays audit-ready, aligns with HIPAA requirements, and integrates seamlessly into your broader risk management strategy.
Conclusion
Cloud threat modeling plays a critical role in protecting PHI and maintaining HIPAA compliance. By sticking to a structured approach - mapping data flows, creating diagrams, applying STRIDE, prioritizing risks, aligning mitigations with HIPAA safeguards, embedding security into CI/CD pipelines, and automating evidence gathering - you create a security system that adapts to your ever-changing cloud environment.
In 2024, healthcare data breaches surged by 30% compared to the previous year. Cloud misconfigurations alone exposed 116 million patient records, and the average cost of a breach hit $10.93 million, making it the most expensive across all industries [7][9]. These figures highlight the urgency of maintaining an up-to-date threat model, as risks evolve quickly, and staying ahead is essential.
To stay prepared, conduct quarterly reviews of your threat model. Update data flow diagrams and STRIDE analyses whenever new cloud services or vendors are introduced. This not only aligns with HIPAA’s requirement for periodic risk assessments under §164.308(a)(1)(ii)(A) but also helps you catch vulnerabilities before they lead to breaches [8]. This iterative process reinforces the integration strategies previously discussed.
Tools like Censinet RiskOps™ can simplify the process by automating third-party risk assessments, vulnerability scans, and audit evidence collection. This reduces manual effort while ensuring PHI remains protected.
Start by piloting your threat model on a single cloud service. Track improvements like better audit scores and quicker remediation times, then expand the process across your organization. This approach can significantly lower breach risks and cut compliance costs.
FAQs
Where should we start a cloud threat model in a multi-cloud environment?
The first step is to chart how data moves across all cloud systems that handle ePHI or other sensitive information. This means pinpointing the flow of data between various providers to spot any weak links or areas where exposure could occur. Understanding these pathways is key to identifying potential vulnerabilities.
Perform Comprehensive Risk Assessments
Once you’ve mapped the data flows, dive into detailed risk assessments for each cloud environment. It’s crucial to grasp the shared responsibilities between your organization and cloud providers. This clarity helps you tackle common risks early on, such as misconfigurations, insecure APIs, or privilege misuse. By addressing these issues proactively, you can significantly reduce the chance of security breaches.
How do we decide which PHI data flows to model first?
When deciding which PHI data flows to focus on first in a healthcare cloud threat model, start by mapping how electronic protected health information (ePHI) moves across systems. This step is crucial for spotting potential vulnerabilities and weak points, ensuring sensitive data remains secure. By visualizing these data flows, you can pinpoint high-risk pathways where ePHI might be most exposed. This targeted approach helps prioritize risk reduction efforts and aligns with industry best practices for healthcare threat modeling.
How can we automate HIPAA audit evidence from our threat model?
Using tools like Censinet RiskOps™, you can simplify the process of gathering HIPAA audit evidence directly from your threat model. This platform automates workflows to systematically collect critical documentation, such as:
- Logs
- Security configurations
- Access control records
- Incident response reports
Automation not only cuts down on manual work but also ensures the accuracy and integrity of your evidence. Plus, it enables ongoing compliance monitoring, which plays a key role in preparing for successful HIPAA audits.
